Power Supply

Operating Voltage

21-30V DC, obtained through EIB bus

Input Voltage

230V AC (50/60Hz)

Input

Number of dimming channels

1/2/4

Model

HKLT0101412J/ HKLT0201412J

/HKL-T0401412J

Output Voltage

230V AC (50/60Hz)

Maximum output power per channel

Two dimming channels, each with a power of 1000W;

1 and 4 dimming channels, each with 500W

Protection

Short circuit and over temperature protection

Maximum loss per route

5W

Connection

EIB/KNX

EIB bus connection terminals

Load Output

2 screw terminals per channel

Load Input

2 screw terminals, one connected to L and one connected to N

KNX Bus Operation and Display

Key and Red LED

Indicates that the current circuit has an output

Green LED Flashing

Indicates that the current circuit has an output

Red LED on

Indicates that the current circuit is short circuited and the fuse has blown

All red LEDs are on

Over temperature indication, when exceeding 90℃, the actuator automatically turns off the output

Protection Type Level

IP20, EN60 529

Environmental Temperature

Operate Temperature

- 5℃~45℃

Storage Temperature

-25℃~55℃

Transportation Temperature

-25℃~70℃

Environmental

Condition

Humidity

<93%, except for condensation

Installation Method

Standard 35mm DIN rail installation

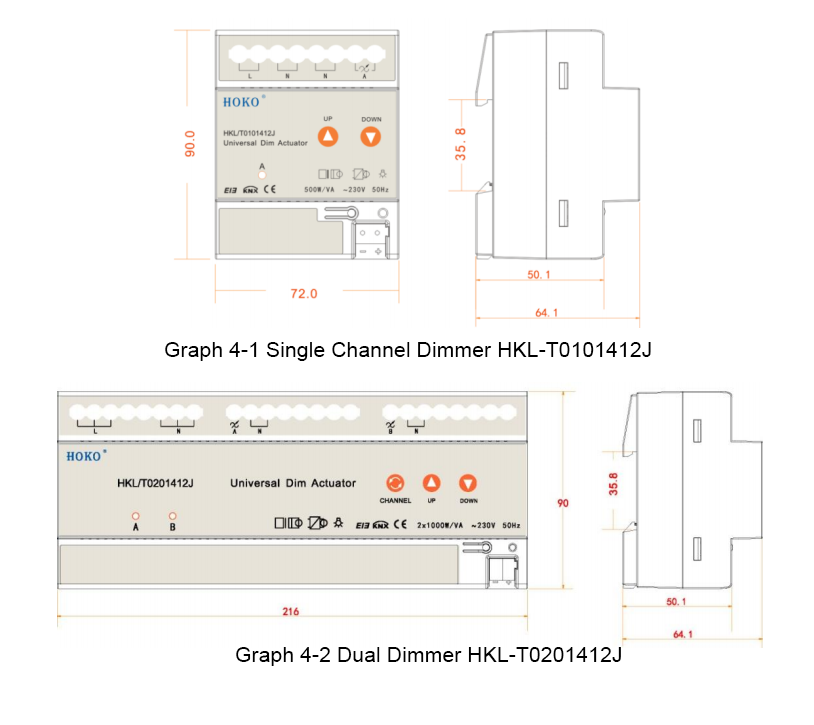

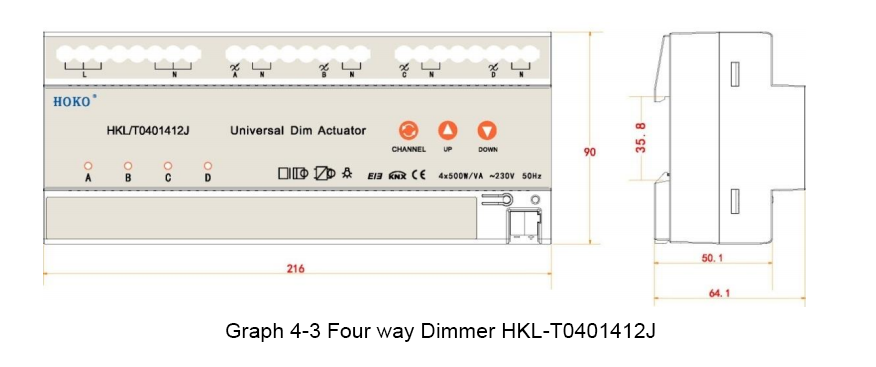

Dimension

(H*W*D)

1 Way 90×72×64 mm

2 Way 90×216×64 mm

4 Way 90×216×64 mm

CE Standard

Complies with EMC standards and low voltage standards

Certification

EIB/KNX

Weight

1 Way 0.3kg

2 Way 0.6kg

4 Way 0.75kg
